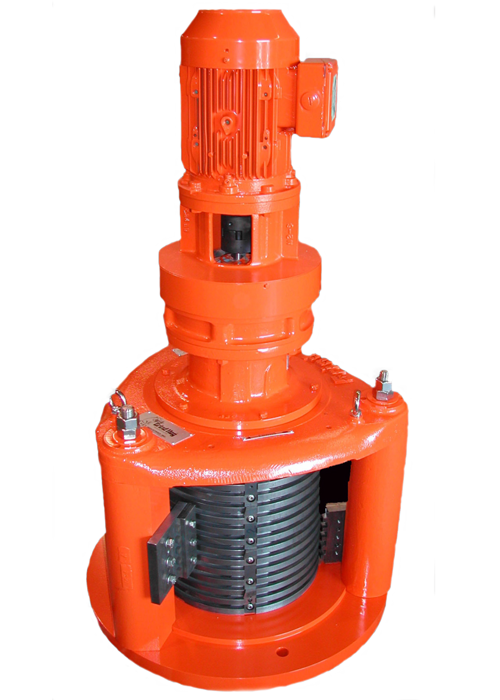

Vertical Discharge

Open Channel – Vertical Discharge Comminutors

Models: 10L, 16A, 16B, 24A, 26A

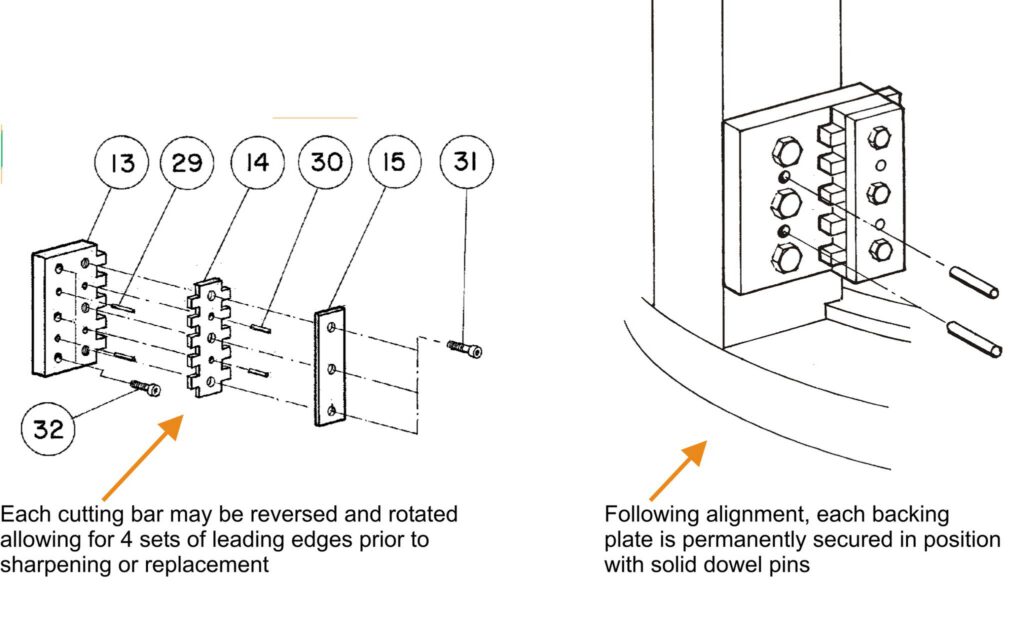

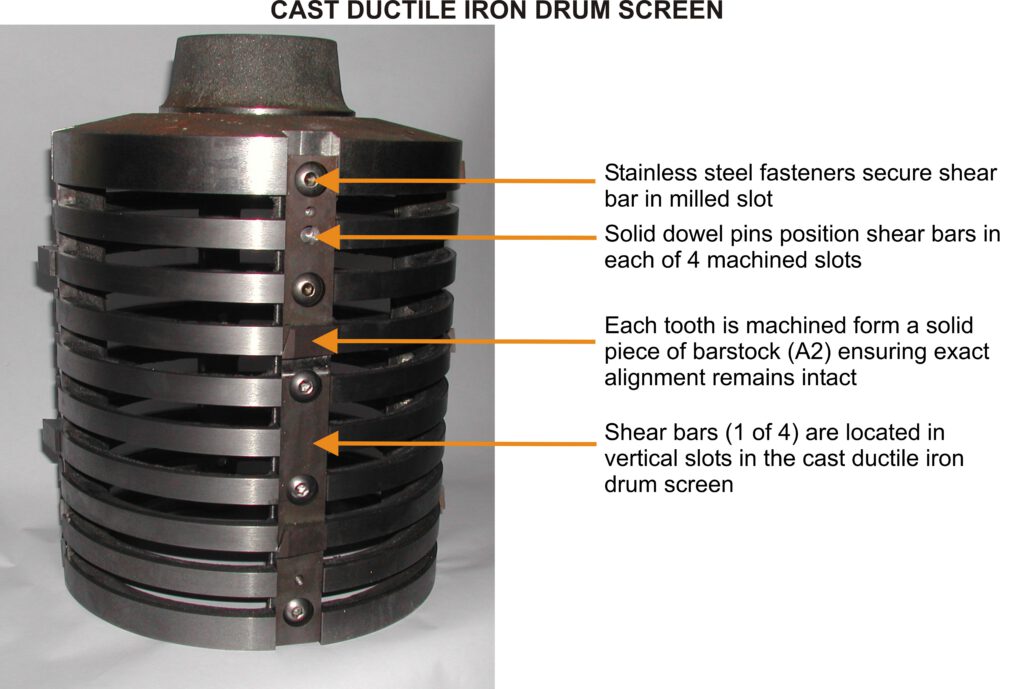

Grind Hog™ Vertical Discharge comminutors feature rugged cast-iron construction with cutting bar elements of high quality tool steel, CNC machined and surface ground for precise tolerances. The shredding and screening capability is further enhanced through the use of SM-Cyclo gear reducers offering a 500% overload capacity.

Flow Rate: 1.2 MGD (4,500 m³/day)

Model 10L

Standard

Model 10LS

Immersible

Model 10LSX

Submersible SX

Model 10LH

Hydraulic

Flow Rate: 3.5 MGD (13,200 m³/day)Inlet Flange: None

Model 16A

Standard

Model 16AS

Immersible

Model 16ASX

Submersible SX

Flow Rate: 4.5 MGD (17,000 m³/day)Inlet Flange: None

Model 16B

Standard

Model 16BS

Immersible

Model 16BSX

Submersible SX

Flow Rate: 10 MGD (37,800 m³/day)Inlet Flange: None

Model 24A

Standard

Model 24AS

Immersible

Model 24ASX

Submersible SX

Flow Rate: 20 MGD (75,700 m³/day)Inlet Flange: None

Model 26A

Standard

Model 26AS

Immersible

Model 26ASX

Submersible SX

Key Features

Located in an open channel or structure with influent discharging vertically below the unit
Flow range 1.2 MGD – 20 MGD

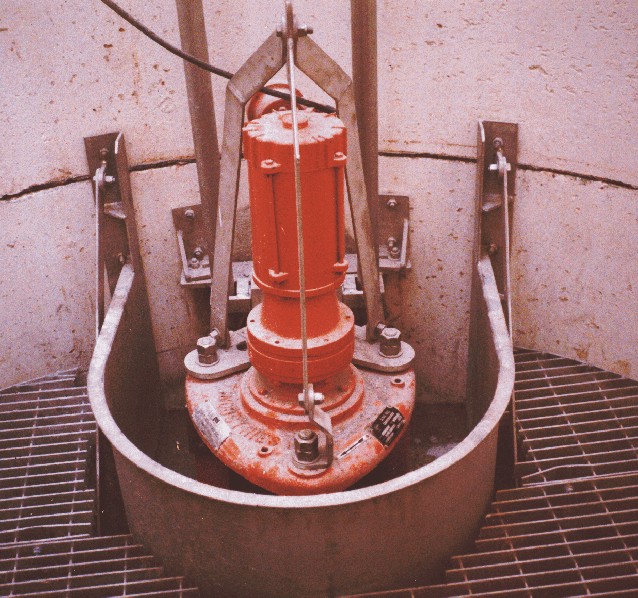

Kwik-Lift Slide Rail System allows for convenient removal from wet well or manhole
