Grind Hog Comminutors
What are Comminutors?
Comminutors are specialized equipment widely used in wastewater treatment facilities. Designed to grind, shred and screen solids such as diapers, plastics, and other solids, Grind Hog comminutors are key to the effective operation of wastewater headworks and pumping stations.
G.E.T. Industries Inc.
G.E.T. Industries Inc. has manufactured Grind Hog comminutors since 1975 with proven longevity in the industry. Built rugged and durable these units are competitively priced and offer excellent alternative wastewater solid management to any other forms of consideration.
Keeping current with the most recent of designs of wastewater applications, options such as “Kwik-Lift Removal System”, “Toilet Seat” and Custom Motor Columns (MC) concepts enhance the rugged and reliable primary function of each Grind Hog comminutor. Cutters are made of of high quality tool steel combined with reversible cutting bars that offer extended life to the comminutor. Although known for limited maintenance requirements, Grind Hog comminutor’s serviceability is made easy with multiple options on each model.
Grind Hog Models at a Glance
Models vary in size with the smallest (130gpm) fitted with a 6″ inlet flange that can be mounted “fixed-in-place” or on a slide rail system for remote removal. There is no minimum flow requirement for continuous operation. By-pass screens and controllers compliment the installation to provide uninterrupted service.

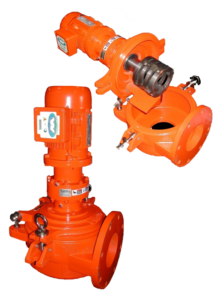

Flange Mounted Comminutors
Standard 25′ Control Cable Included for all Flange Mounted Models
Standard Equipment includes V6120 Cyclo
| Model | Description | Capacity | Inlet Flange | Variations |
|---|---|---|---|---|
| Model 5A | Free Discharge | 130 gpm (US) / 8.2 l/s | 6" (152 mm) | Model 5A · Model 5AS · Model 5ASX |
| Model 5B | With Return Bend | 130 gpm (US) / 8.2 l/s | 6" (152 mm) | 5BS Immersible |
| Model 7A-6 | Free Discharge | 315 gpm (US) 19.9 l/s | 6'' (152 mm) | Model 7A-6 · Model 7AS-6 · Model 7ASX-6 |
| Model 7B-6 | With Return Bend | 315 gpm (US) 19.9 l/s | 6'' (152 mm) | BSX |
| Model 7A-8 | Free Discharge | 315 gpm (US) 19.9 l/s | 8" (203mm) | Model 7A-8 · Model 7AS-8 · Model 7ASX-8 |
| Model 7B-8 | With Return Bend | 315 gpm (US) 19.9 l/s | 8" (203mm) | Consult Factory |
| Model 10A | Free Discharge | 850 gpm (US) 53.6 l/s | 8" (203mm) | Model 10A · Model 10AS · Model 10ASX |
| Model 10B | With Return Bend | 850 gpm (US) 53.6 l/s | 8" (203mm) | Consult Factory |
Legend: S = Immersible, SX = Submersible, Explosion Proof Continuous-in-air

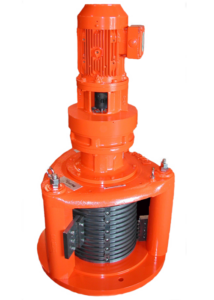

| Model | Capacity | Variations |
|---|---|---|
| Model 10L | 1.2 MGD (4,500 m³/day) | Model 10L · Model 10LS · Model 10LSX |
| Model 16A | 3.5 MGD (13,200 m³/day) | Model 16A · Model 16AS · Model 16ASX |
| Model 16B | 4.5 MGD (17,000 m³/day) | Model 16B · Model 16BS · Model 16BSX |
| Model 24A | 10 MGD (37,800 m³/day) | Model 24A · Model 24AS · Model 24ASX |
| Model 26A | 20 MGD (75,700 m³/day) | Model 26A · Model 26AS · Model 26ASX |
Legend: S = Immersible, SX = Submersible, Explosion Proof Continuous-in-air

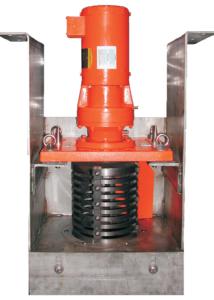

Horizontal Flow Comminutors – “Toilet Seat”
Standard Configuration are Clockwise Rotation Only
| Model | Capacity | Variations |
|---|---|---|
| Model 10 T/S | 1.2 MGD (4,500 m³/day) | Model 10 T/S · Model 10S T/S · Model 10SX T/S |
| Model 16A T/S | 3.5 MGD (13,200 m³/day) | Model 16A T/S · Model 16AS T/S · Model 16ASX T/S |
| Model 16B T/S | 4.5 MGD (17,000 m³/day) | 16BS T/S Immersible, 16BSX T/S Sub. XP Cont-in-air (Consult Factory) |
Legend: S = Immersible, SX = Submersible, Explosion Proof Continuous-in-air
